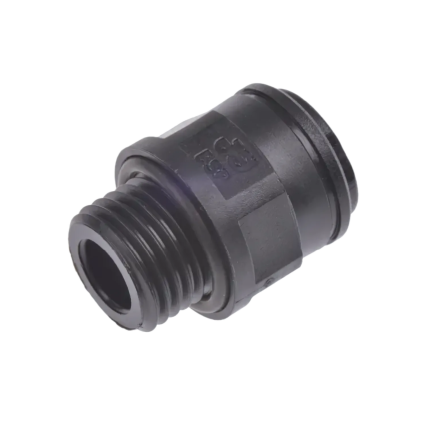

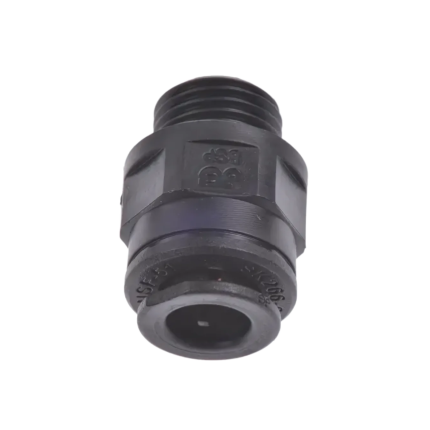

E700-CSC Capillary Tube Connector

The E700‑CSC is a compact connector designed to join 4 mm capillary tubes to 25 mm aspirated smoke detection (ASD) pipe systems. It features a 1/4″ BSP male thread that fits directly into the E700‑TA trunk adaptor. Once installed, it allows for fast and secure push‑fit connection of the capillary sampling tube, creating a reliable pathway for air sampling from remote or enclosed locations.

This connector is typically used in environments where targeted sampling is required—such as inside electrical cabinets, equipment racks, or confined ceiling voids. By enabling accurate connection of small-bore tubing, the E700‑CSC plays an essential role in extending the reach of ASD systems to high‑risk or hard‑to‑access areas.

Made from durable PVC, the E700‑CSC supports long‑term performance in cleanroom, industrial, and commercial installations. It is part of a fully matched pipe and fittings range, developed to meet the specific needs of ASD installers and system designers.

For optimal function, the E700‑CSC is used in combination with the E700‑TA adaptor and 4 mm external diameter capillary tubing.

For more information contact the ATP sales team.
