ADV Technology
By applying ADVtechnology the number of different components has been significantly reduced. This facilitates handling and leaves no room for confusion, as only one type of each component is used. At the same time, the actuators have been reduced in size, making them lighter and easier to handle during installation and maintenance.
Due to an adaptation in the mechanical design of the cylinder valve, the gas cylinder can open with a lower pneumatic pressure. This means that only one type of manifold, control hose, discharge hose and pneumatic actuator is needed – covering the full pressure range (8 – 360 bar).
Furthermore, this new cylinder valve can accommodate either an electric or a pneumatic actuator, so only one type of valve body is needed.
Assembly by hand, without additional sealants!

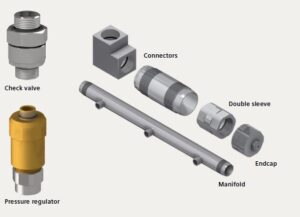

The check valve, pressure regulator, manifolds and connectors are all designed and equipped with the O-ring sealing mechanism. With a few twists of the wrist, and minimal force, all components are assembled by hand without needing special mechanical tools or additional sealants, such as hemp string or teflon tape.
Sinorix NXN – typical applications
- Data Centers & Server Rooms
- Gas Turbines
- LI-Ion Battery Energy Storage Systems (BESS)
- Telecommunication systems
- Power distribution/E-houses
- Industrial applications
- Electrical switching rooms
- Cable ducts
Sinorix Silent Extinguishing Technology
Sinorix CDT – Constant Discharge Technology
Sinorix Constant Discharge Technology (CDT) is a technology where the cylinder valve releases the extinguishing agent at a constant mass flow.
But why is this important?
Conventional extinguishing systems are called unregulated, as they do not regulate the flow rate at which the extinguishing agent is released. This means that there is a huge pressure peak at the start of discharge, requiring large overpressure flaps.
In addition to overpressure, unregulated systems also generate a lot of noise during discharge. The resulting vibrations can severely impair the operation of hard disks or other sensitive equipment, for example in server rooms and data centers.
Sinorix CDT eliminates this pressure peak, resulting in lower noise levels and allowing the size of the overpressure flaps to be reduced by up to 70%.

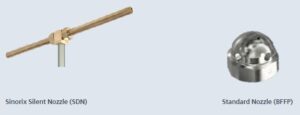

Sinorix silent nozzle
In combination with Sinorix CDT, the Sinorix silent nozzle forms an unbeatable combination for protecting sensitive hard disks.
Its ingenious design further reduces the noise level during discharge of the extinguishing agent.
