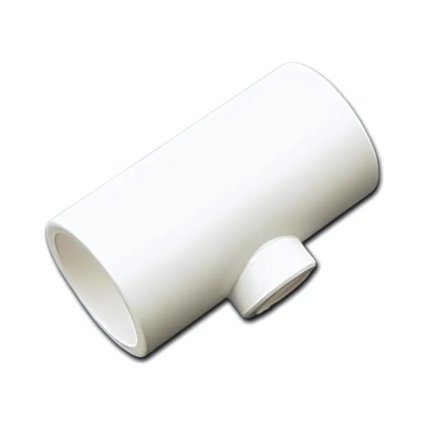

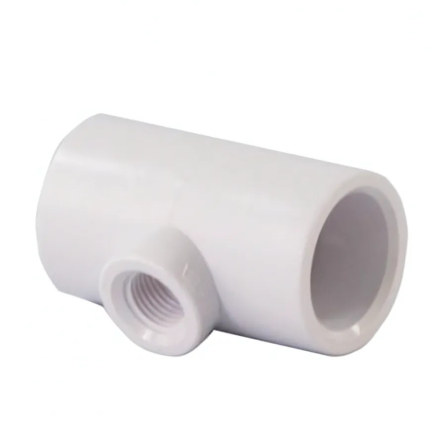

E700-TA

ASD Trunk Adaptor (This is the main body that connects directly to the 25 mm aspirating pipe. It acts as the interface between the large trunk pipe and the capillary connections.)

Advanced Technology Products are proud to only supply the highest-quality products for your Aspirated Smoke Detector Sampling Network requirements.

For optimum performance, an aspirating smoke detection system needs a well-designed and installed quality pipework system.

ATP’s ASD Pipe and Fittings range fulfils this requirement by creating lightweight and versatile products that have been specially developed to provide fully matched components for the optimal performance of your whole Aspirated Smoke Detection System.

Requires E700-CSC Capillary Tube Connector.

Enquire Now

Function: Connects 25 mm aspirating pipe to capillary tube sampling points

Port Size: 1/4″ BSP female threaded ports (compatible with E700-CSC connectors)

Pipe Connection: 25 mm OD ASD pipe (push-fit or solvent weld depending on installation)

Material: PVC

Colour: White

Configuration: Standard trunk adaptor with one or more threaded ports

Compatibility: Fits ATP ASD pipe and fittings range

Pressure Range: Low pressure air movement in ASD systems

Temperature Range: 0 °C to 60 °C (non-condensing environments)

Application: Aspirated smoke detection in commercial and industrial spaces

Installation:

Cut and deburr 25 mm pipe
Fit E700-TA inline using appropriate method
Screw E700-CSC connectors into port(s)
Insert capillary tubes into CSC fittings

Seal Type: Mechanical seal (O-ring and thread)

Weight: Approx. 30 g

Packaging: Supplied individually or in project-specific kits

The E700‑TA is a core component of aspirated smoke detection systems, acting as the interface between 25 mm ASD trunk pipe and remote capillary sampling points. It includes one or more 1/4″ BSP female-threaded ports that accept the E700‑CSC capillary tube connectors.

Once installed, the adaptor allows capillary tubes to draw air samples from difficult or enclosed areas and deliver them back to the main detection pipe for analysis. This is critical in applications such as equipment enclosures, high racking, or air return plenums.

Constructed from durable PVC, the E700‑TA offers long-term reliability in both industrial and commercial environments. It forms part of a fully matched range of ASD pipework and fittings, designed for fast installation and consistent performance.

For more information contact the ATP sales team.

Click here to download the ATP ASD Fittings Brochure
