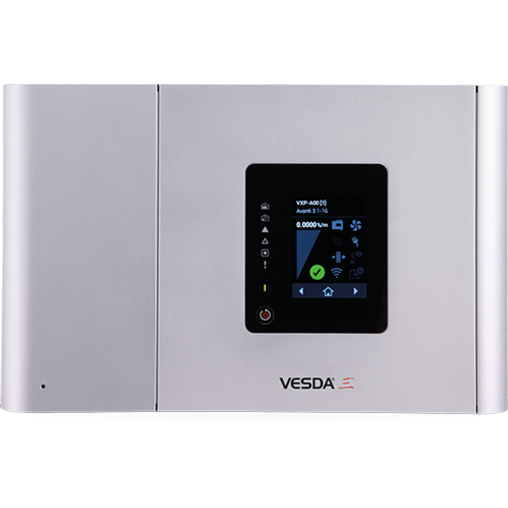

VESDA-E VEU

Next generation of VESDA Aspirating Smoke Detection Technology

The VEU series of aspirating smoke detectors are the premium detector of the VESDA-E range. An Ultra-wide sensitivity range; 15 times greater than VESDA VLP, and provision for more sampling holes provide an increased coverage in high airflow applications by up to 40%.

A range of revolutionary new features provide unsurpassed detection performance, flexibility, field programmability, connectivity and reduced total cost of ownership.

Short wavelength laser based detection
Inherent absolute calibration
Advanced detection technology equivalent to hundreds of thousands of sensors
Clean air barrier for optics protection
Most robust contamination resistance
Ultra-wide sensitivity range
Flow fault thresholds configurable per port
Long-life, easy-to-replace filter
LEDs for alarm and fault signalling
3.5” colour touch screen for status review
Advanced remote diagnostics
Area coverage up to 2,000 m² (21,500 ft²)
Up to four inlet pipes
Total pipe length of 800 m (2,624 ft)
AutoLearnTM Smoke and Flow
Seven programmable relays
Two GPIs, monitored and unmonitored
Ultrasonic flow sensing
Easy mounting with optional steel support bracket
Field replaceable aspirator, sampling module, filter and detection chamber
VESDAnet networking
Ethernet 100 base T & WiFi, IEEE488.11/b/g/n
Easy cable termination access
Event Log (20,000 events)

VESDA-E VEU

The VESDA-E VEU is the premium detector in the VESDA-E Range. It provides Ultra-wide alarm sensitivity range from 0.001% – 20.0% obs/m (0.0003 to 6.25% obs/ft) and up to 80 Class A holes; extending detector coverage by at least 40% in high airflow environments. VEU also provides 400 m (1,312 ft) and 800 m (2,625 ft) of linear and branched pipe networks respectively, increasing coverage by up to 80% in high ceiling applications while allowing for convenient detector mounting for ease of access and maintenance. VEU has area coverage of up to 6,500 m2 (69,965 sq. ft)*. VEU standard features include StaX support together with Ethernet, Wi-Fi, USB and VESDAnet capabilities.
